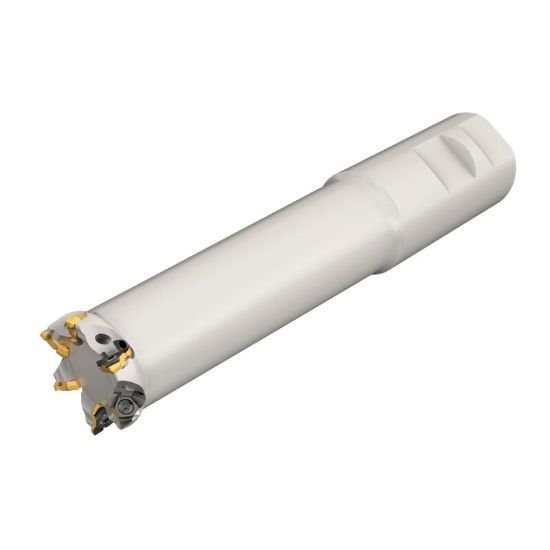

Picture of Iscar TR6 ERD0.75-4-2.5W0.75-07 Milling Cutter 45.0°, 90.0° 0.750 Diameter Weldon 0.750 4.530 OAL 4 Flute

Iscar TR6 ERD0.75-4-2.5W0.75-07 Milling Cutter 45.0°, 90.0° 0.750 Diameter Weldon 0.750 4.530 OAL 4 Flute

Part Number: ISC3344286 ISO: TR6 ERD0.75-4-2.5W0.75-07 ANSI:TR6 ERD0.75-4-2.5W0.75-07
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012918
Vendor: Sussex Tool and Supply
$382.08

Description

ISCAR 3344286 Multi 45.0°, 90.0°, End Mill, Chamfer Mill, Feed Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Chamfer Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type External
Insert Screw 7006976
Dimensions & Sizing
Overall Length 4.5300 115.06MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 45.0°, 90.0°
Performance & Capacity
Cut Dia Min 0.6710 17.04MM
Depth Of Cut Max 0.0390
Cut Dia Max 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Steel
