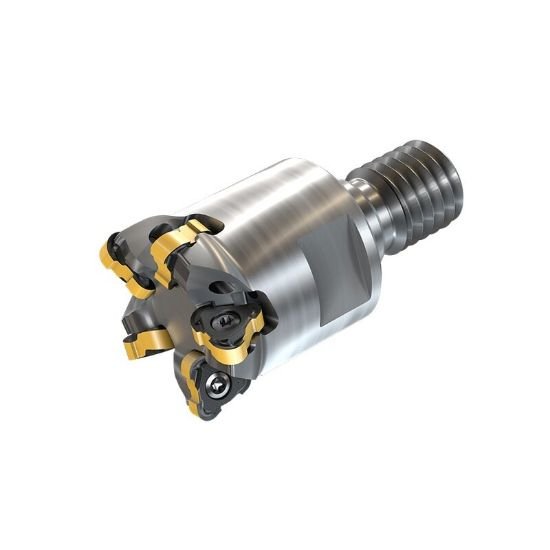

Picture of Iscar TR6 ER D35/1.38-5-M16-10 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.362 OAL 5 Flute

Iscar TR6 ER D35/1.38-5-M16-10 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.362 OAL 5 Flute

Part Number: ISC3320737 ISO: TR6 ER D35/1.38-5-M16-10 ANSI:TR6 ER D35/1.38-5-M16-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012836
Vendor: Sussex Tool and Supply
$447.36

Description

ISCAR 3320737 Multi 45.0°, 90.0°, End Mill, Chamfer Mill, Feed Mill Thread On SCREWM16 Positive 1.3780 35.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Chamfer Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type External
Insert Screw 7006042
Dimensions & Sizing
Overall Length 2.3620 59.99MM
Flutes/Inserts 5
Tool Dia 1.3780 35.00MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 45.0°, 90.0°
Performance & Capacity
Cut Dia Min 1.1810 30.00MM
Depth Of Cut Max 0.0390
Cut Dia Max 1.3780 35.00MM
Materials & Finish
Tool Material Steel
