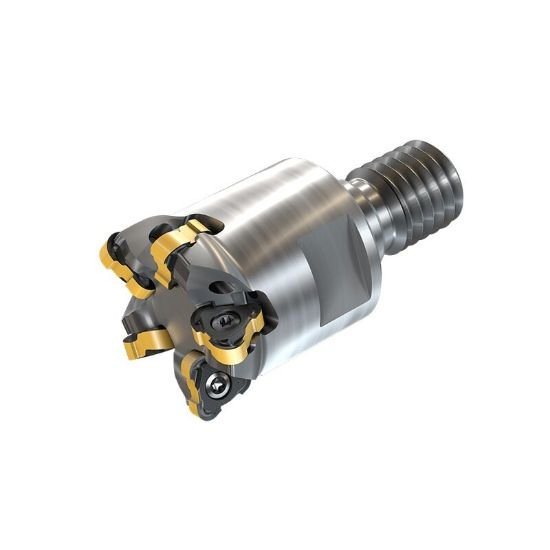

Picture of Iscar TR6 ER D16/0.63-2-M08-07 Milling Cutter 45.0°, 90.0° 0.630 Diameter Screw On M08 1.661 OAL 2 Flute

Iscar TR6 ER D16/0.63-2-M08-07 Milling Cutter 45.0°, 90.0° 0.630 Diameter Screw On M08 1.661 OAL 2 Flute

Part Number: ISC3320744 ISO: TR6 ER D16/0.63-2-M08-07 ANSI:TR6 ER D16/0.63-2-M08-07
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012837
Vendor: Sussex Tool and Supply
$323.52

Description

ISCAR 3320744 Multi 45.0°, 90.0°, End Mill, Chamfer Mill, Feed Mill Thread On SCREWM08 Positive 0.6300 16.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Chamfer Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type External
Insert Screw 7006042
Dimensions & Sizing
Overall Length 1.6610 42.19MM
Flutes/Inserts 2
Tool Dia 0.6300 16.00MM
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 45.0°, 90.0°
Performance & Capacity
Cut Dia Min 0.5510 14.00MM
Depth Of Cut Max 0.0390
Cut Dia Max 0.6300 16.00MM
Materials & Finish
Tool Material Steel
