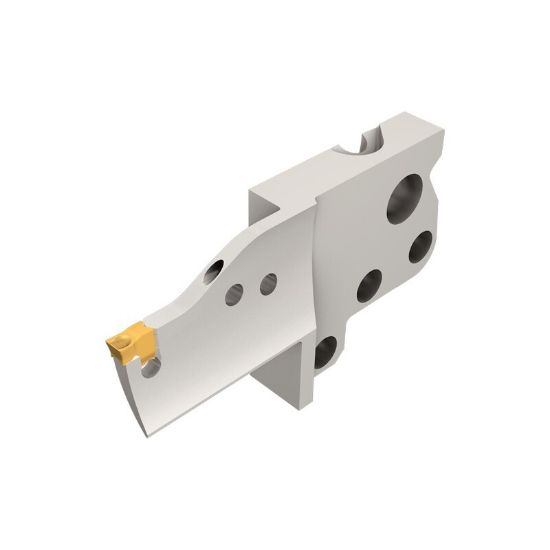

Picture of ISCAR TNFPAD-XL 5L-60T40-JHP Face Grooving Adapter Blade Tool

ISCAR TNFPAD-XL 5L-60T40-JHP Face Grooving Adapter Blade Tool

ANSI: TNFPAD-XL 5L-60T40-JHP

ISO: TNFPAD-XL 5L-60T40-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3368877
Delivery date: 3-5 days
$259.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

WF(assembly)=WF(shank) + WF(adapter) TNF 4..5..6 inserts can be used with left and right hand adapters.

Details

Adapters for face grooving, for 1.377-12.28" diameter range.Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Positive
Additional Key Information 3 Clamp Down
Insert/Tool Tool
Application Face Grooving
Additional Key Information 1 Face Grooving
Additional Key Information 4 Modular Tools
Sold by Pieces 1
Additional Key Information 2 Adapter Blade
Shipping State Texas
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 5
Cutting Width 0.1970 5.00MM
Tool Material Steel
Overall Len 3.3460 84.99MM
Face Groove Max Dia 3.5400
Machine Side MOD ISCAR MHD
Depth Of Cut Max 1.5750
Machine Side Connection Type Modular
Face Groove Min Dia 2.3600
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape L Shape
Insert Style TN
