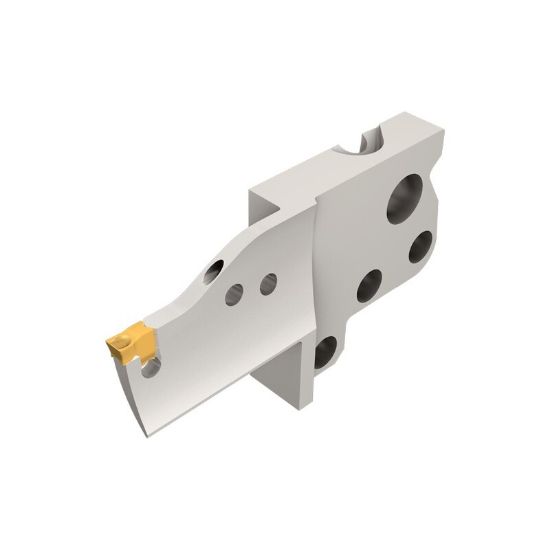

Picture of ISCAR TNFPAD-XL 4L-45T35-JHP Face Grooving Adapter Blade Tool

ISCAR TNFPAD-XL 4L-45T35-JHP Face Grooving Adapter Blade Tool

ANSI: TNFPAD-XL 4L-45T35-JHP

ISO: TNFPAD-XL 4L-45T35-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3368880
Delivery date: 3-5 days
$259.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

WF(assembly)=WF(shank) + WF(adapter) TNF 4..5..6 inserts can be used with left and right hand adapters.

Details

Adapters for face grooving, for 1.377-12.28" diameter range.Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Package Size 1
Sold by Pieces 1
Additional Key Information 2 Adapter Blade
Additional Key Information 4 Modular Tools
Shipping State Texas
Insert Type Positive
Additional Key Information 3 Clamp Down
Insert Application General Purpose
Additional Key Information 1 Face Grooving
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 1.3780
Cutting Width 0.1570 3.99MM
Overall Len 3.1500 80.01MM
Face Groove Min Dia 1.7700
Insert Size Ic 4
Machine Side Connection Type Modular
Face Groove Max Dia 2.6800
Machine Side MOD ISCAR MHD
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Insert Shape/Cutter Pocket Shape L Shape
