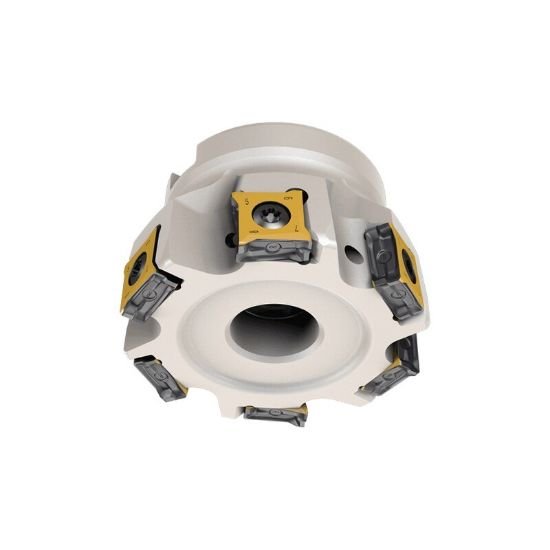

Picture of Iscar T890HT FLND4.0-12-1.5-R13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 12 Flute

Iscar T890HT FLND4.0-12-1.5-R13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 12 Flute

Part Number: ISC3332804 ISO: T890HT FLND4.0-12-1.5-R13 ANSI:T890HT FLND4.0-12-1.5-R13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012888
Vendor: Sussex Tool and Supply
$1,286.40

Description

ISCAR 3332804 90.0°, Face Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 3331146
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 12
Tool Dia 4.0000 101.60MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.3740
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
