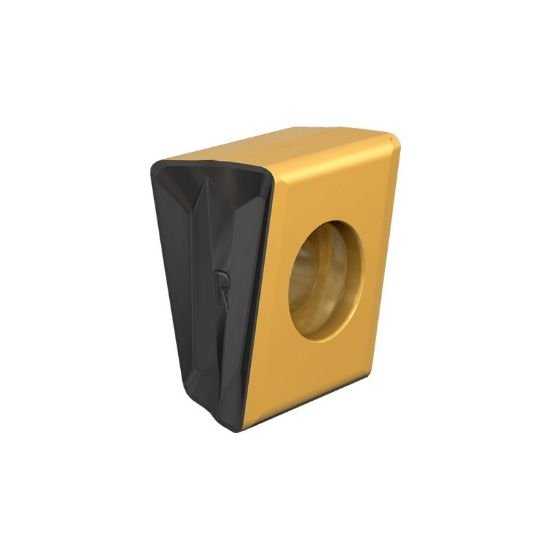

Picture of Iscar T490LNMT1306PNTR IC5400 Milling Insert On Edge 0.031 Corner Radius TiCN + Al2O3 + TiN

Iscar T490LNMT1306PNTR IC5400 Milling Insert On Edge 0.031 Corner Radius TiCN + Al2O3 + TiN

Part Number: ISC5606675 ISO: T490LNMT1306PNTR IC5400 ANSI:T490LNMT1306PNTR IC5400
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011576
Vendor: Sussex Tool and Supply
$27.61
This product has a minimum quantity of 10

Description

ISCAR 5606675 Insert Negative TiCN + Al2O3 + TiN A tough substrate with MTCVD and alpha alumina coating. Recommended for milling steel at high cutting speed and for parting stainless steel.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style T
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 13
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Depth Of Cut Max 0.4920
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC5400
Compatibility & Fit
Insert Fits On Edge
