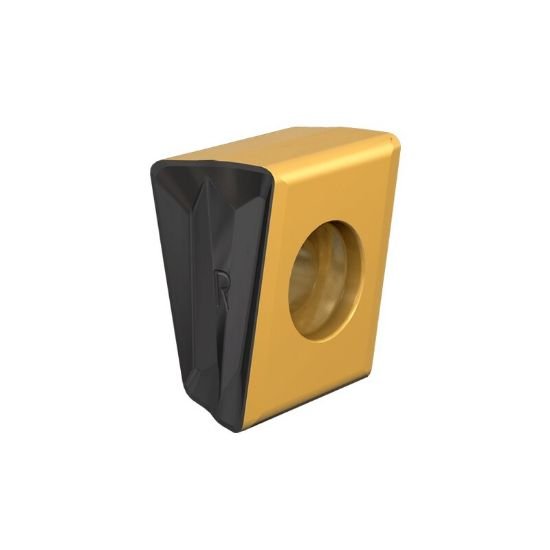

Picture of Iscar T490LNMT1306PNTR IC5100 Milling Insert On Edge 0.031 Corner Radius TiCN + Al2O3

Iscar T490LNMT1306PNTR IC5100 Milling Insert On Edge 0.031 Corner Radius TiCN + Al2O3

Part Number: ISC5605883 ISO: T490LNMT1306PNTR IC5100 ANSI:T490LNMT1306PNTR IC5100
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011582
Vendor: Sussex Tool and Supply
$27.61
This product has a minimum quantity of 10

Description

ISCAR 5605883 Insert Negative TiCN + Al2O3 A CVD multi-layer coating with SUMOTEC post coating surface treatment. Recommended for milling grey cast iron at high cutting speeds and provides extended tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style T
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 13
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Depth Of Cut Max 0.4920
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3
Grade IC5100
Compatibility & Fit
Insert Fits On Edge
