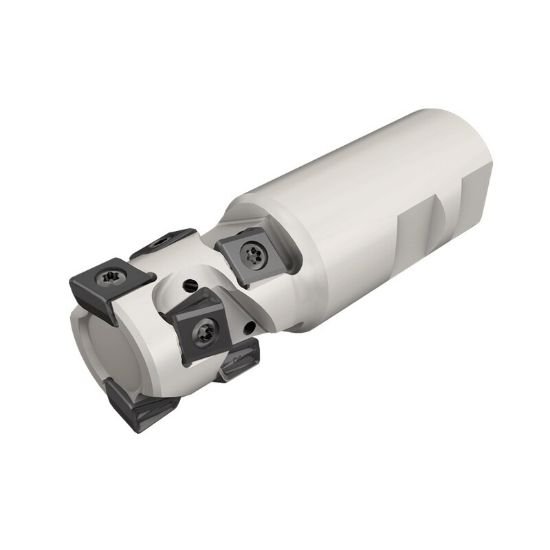

Picture of Iscar T490LNKD1.50-20-3-W125-11 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.700 OAL 18 Flute

Iscar T490LNKD1.50-20-3-W125-11 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.700 OAL 18 Flute

Part Number: ISC3107171 ISO: T490LNKD1.50-20-3-W125-11 ANSI:T490LNKD1.50-20-3-W125-11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012612
Vendor: Sussex Tool and Supply
$1,900.80

Description

ISCAR 3107171 90.0°, Corn Cob End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4390045
Dimensions & Sizing
Overall Length 4.7000 119.38MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 18
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 2.0200
Materials & Finish
Tool Material Steel
