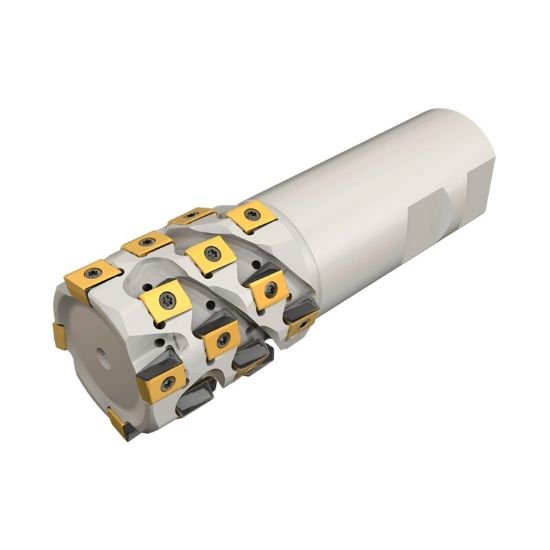

Picture of Iscar T490 LNMD1.50-17-4-W125-8 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.500 OAL 24 Flute

Iscar T490 LNMD1.50-17-4-W125-8 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.500 OAL 24 Flute

Part Number: ISC3106947 ISO: T490 LNMD1.50-17-4-W125-8 ANSI:T490 LNMD1.50-17-4-W125-8
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012582
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3106947 90.0°, Corn Cob End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000000
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 24
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 8
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 1.4400
Materials & Finish
Tool Material Steel
