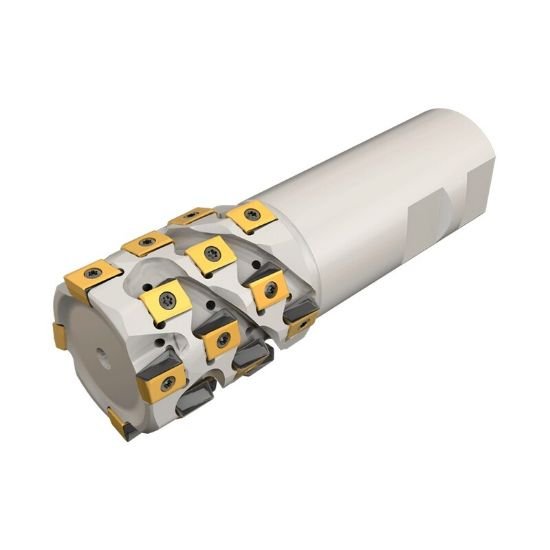

Picture of Iscar T490 LNMD1.00-11-2-W100-8 Milling Cutter 90.0°, Corn Cob 1.000 Diameter Weldon 1.000 4.000 OAL 8 Flute

Iscar T490 LNMD1.00-11-2-W100-8 Milling Cutter 90.0°, Corn Cob 1.000 Diameter Weldon 1.000 4.000 OAL 8 Flute

Part Number: ISC3105820 ISO: T490 LNMD1.00-11-2-W100-8 ANSI:T490 LNMD1.00-11-2-W100-8
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012370
Vendor: Sussex Tool and Supply
$1,084.80

Description

ISCAR 3105820 90.0°, Corn Cob End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4398576
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 8
Tool Dia 1.0000 25.40MM
Insert Size Ic 8
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 1.4400
Materials & Finish
Tool Material Steel
