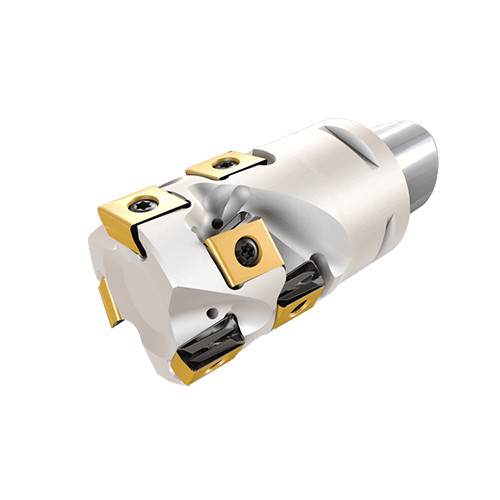

Picture of Iscar T490 LNKD44-36-3-L70C4-13 Milling Cutter 90.0°, Corn Cob 1.732 Diameter PSC "Capto Type" 1.574 3.701 OAL 9 Flute

Iscar T490 LNKD44-36-3-L70C4-13 Milling Cutter 90.0°, Corn Cob 1.732 Diameter PSC "Capto Type" 1.574 3.701 OAL 9 Flute

Part Number: ISC3107188 ISO: T490 LNKD44-36-3-L70C4-13 ANSI:T490 LNKD44-36-3-L70C4-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012620
Vendor: Sussex Tool and Supply
$1,670.40

Description

ISCAR 3107188 90.0°, End Mill, Quick Change, Corn Cob Quick Change CAPTO4 Negative 1.7320 43.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Corn Cob, Quick Change
Coolant Thru Thru Coolant
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type Roughing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Vise Type PCS 4 "CAPTO"
Insert Screw 7000229
Dimensions & Sizing
Overall Length 3.7010 94.01MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 9
Tool Dia 1.7320 43.99MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.7320 43.99MM
Depth Of Cut Max 1.4170
Materials & Finish
Tool Material Steel
