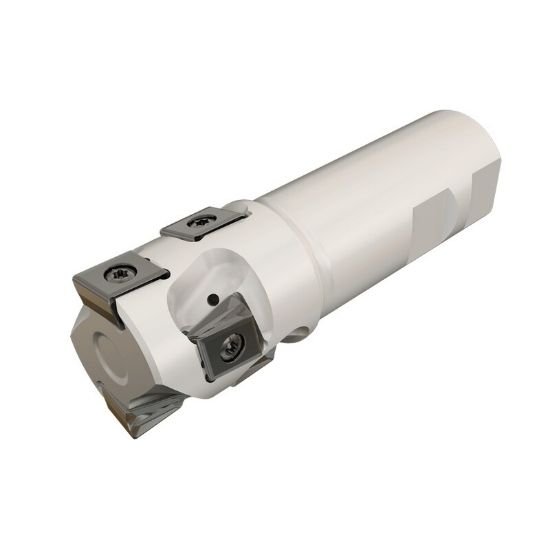

Picture of Iscar T490 LNKD2.0-23-4-W150-13 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.250 OAL 20 Flute

Iscar T490 LNKD2.0-23-4-W150-13 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.250 OAL 20 Flute

Part Number: ISC3105077 ISO: T490 LNKD2.0-23-4-W150-13 ANSI:T490 LNKD2.0-23-4-W150-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012227
Vendor: Sussex Tool and Supply
$2,188.80

Description

ISCAR 3105077 90.0°, Corn Cob End Mill Weldon 1.5000 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000000
Dimensions & Sizing
Overall Length 5.2500 133.35MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 20
Tool Dia 2.0000 50.80MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 2.3200
Materials & Finish
Tool Material Steel
