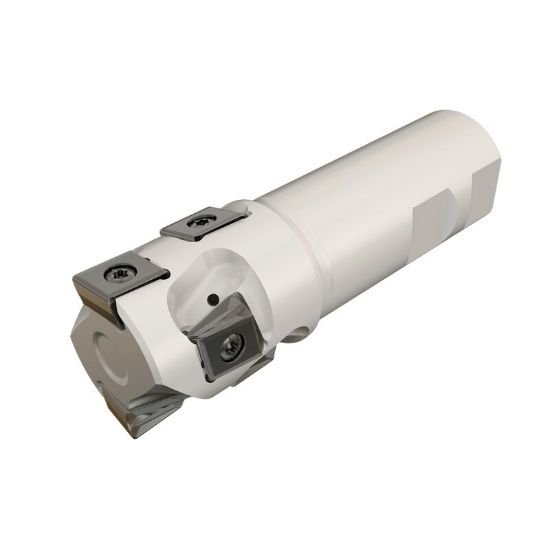

Picture of Iscar T490 LNKD1.5-14-2-W125-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.500 OAL 6 Flute

Iscar T490 LNKD1.5-14-2-W125-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.500 OAL 6 Flute

Part Number: ISC3105074 ISO: T490 LNKD1.5-14-2-W125-13 ANSI:T490 LNKD1.5-14-2-W125-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012224
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3105074 90.0°, Corn Cob End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000000
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2200
Materials & Finish
Tool Material Steel
