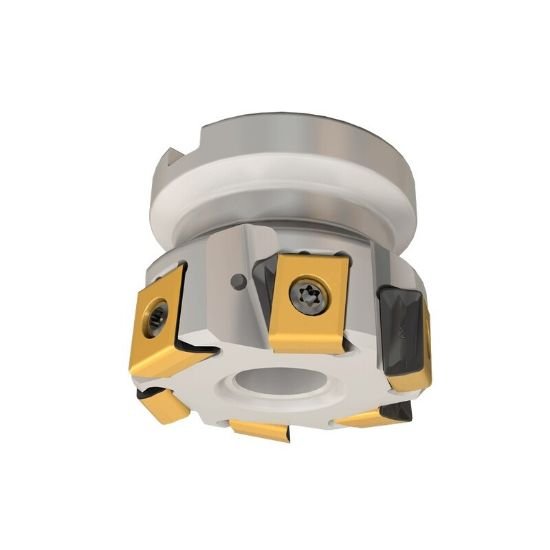

Picture of Iscar T490 FLN D4.00-8-1.5-R-13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Iscar T490 FLN D4.00-8-1.5-R-13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Part Number: ISC3105324 ISO: T490 FLN D4.00-8-1.5-R-13 ANSI:T490 FLN D4.00-8-1.5-R-13
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012294
Vendor: Sussex Tool and Supply
$1,142.40

Description

ISCAR 3105324 90.0°, Face Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7005132
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.4920
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
