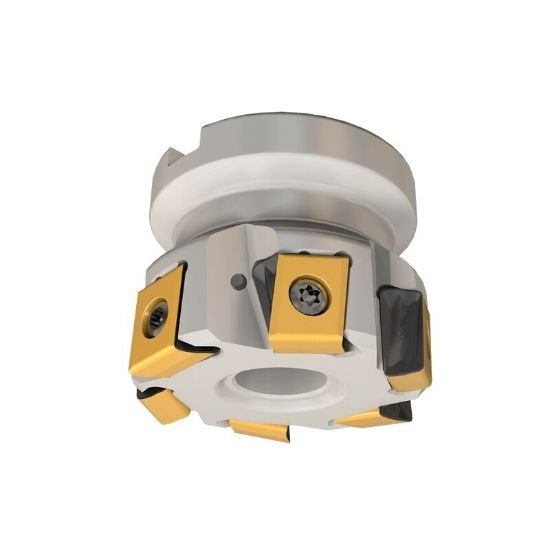

Picture of Iscar T490 FLN D1.50-5-.75-R-13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 5 Flute

Iscar T490 FLN D1.50-5-.75-R-13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 5 Flute

Part Number: ISC3105725 ISO: T490 FLN D1.50-5-.75-R-13 ANSI:T490 FLN D1.50-5-.75-R-13
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012357
Vendor: Sussex Tool and Supply
$645.12

Description

ISCAR 3105725 90.0°, Face Mill SHELL0.7500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4390045
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.0310
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
