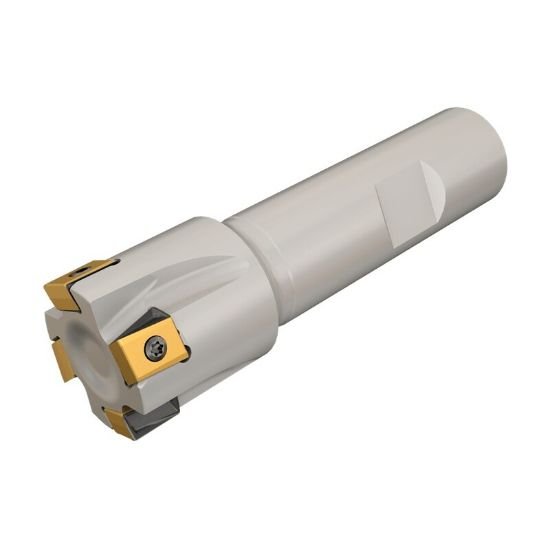

Picture of Iscar T490 ELND1.50-6-W1.00-08C Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

Iscar T490 ELND1.50-6-W1.00-08C Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

Part Number: ISC3105564 ISO: T490 ELND1.50-6-W1.00-08C ANSI:T490 ELND1.50-6-W1.00-08C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012335
Vendor: Sussex Tool and Supply
$633.60

Description

ISCAR 3105564 90.0°, End Mill End Mill Weldon 1.0000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4398576
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 8
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3150
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
