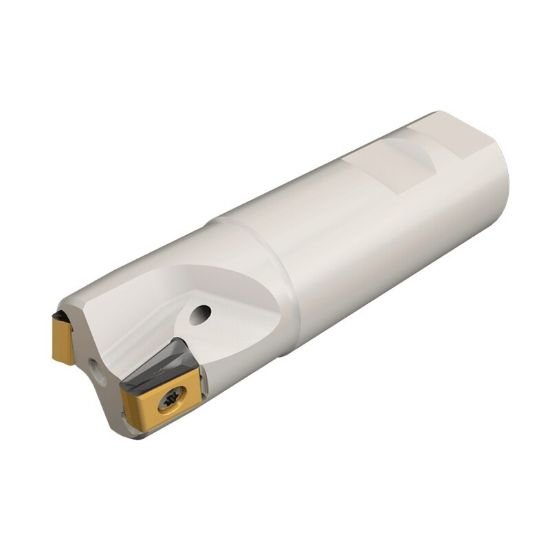

Picture of Iscar T490 ELND1.25-3-W125-13XL Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 6.250 OAL 3 Flute

Iscar T490 ELND1.25-3-W125-13XL Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 6.250 OAL 3 Flute

Part Number: ISC3105300 ISO: T490 ELND1.25-3-W125-13XL ANSI:T490 ELND1.25-3-W125-13XL
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012280
Vendor: Sussex Tool and Supply
$582.72

Description

ISCAR 3105300 90.0°, End Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7005883
Dimensions & Sizing
Overall Length 6.2500 158.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.4920
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 2.90°
Materials & Finish
Tool Material Steel
