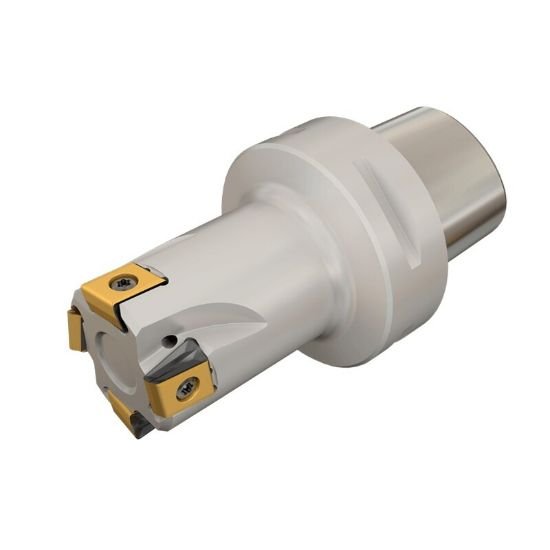

Picture of Iscar T490 ELN D40-4-L80C6-R-13 Milling Cutter 90.0° 1.575 Diameter PSC "Capto Type" 2.362 4.646 OAL 4 Flute

Iscar T490 ELN D40-4-L80C6-R-13 Milling Cutter 90.0° 1.575 Diameter PSC "Capto Type" 2.362 4.646 OAL 4 Flute

Part Number: ISC3105779 ISO: T490 ELN D40-4-L80C6-R-13 ANSI:T490 ELN D40-4-L80C6-R-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012368
Vendor: Sussex Tool and Supply
$672.00

Description

ISCAR 3105779 90.0°, End Mill, Quick Change Quick Change CAPTO6 Negative 1.5750 40.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Quick Change
Coolant Thru Thru Coolant
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Vise Type PCS 6 "CAPTO"
Insert Screw 7006264
Dimensions & Sizing
Overall Length 4.6460 118.01MM
Shank/Pilot Dia 2.3622 60.00MM
Flutes/Inserts 4
Tool Dia 1.5750 40.01MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5750 40.01MM
Depth Of Cut Max 0.3940
Cut Dia Max 1.5750 40.01MM
Max Ramp Angle 2.00°
Materials & Finish
Tool Material Steel
