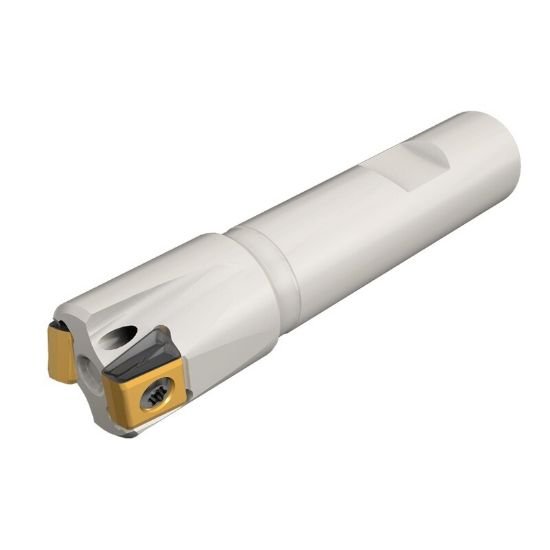

Picture of Iscar T490 ELN D1.25-4-W1.25-11 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 4 Flute

Iscar T490 ELN D1.25-4-W1.25-11 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 4 Flute

Part Number: ISC3107154 ISO: T490 ELN D1.25-4-W1.25-11 ANSI:T490 ELN D1.25-4-W1.25-11
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012606
Vendor: Sussex Tool and Supply
$591.36

Description

ISCAR 3107154 90.0°, End Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4308097
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3500
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
