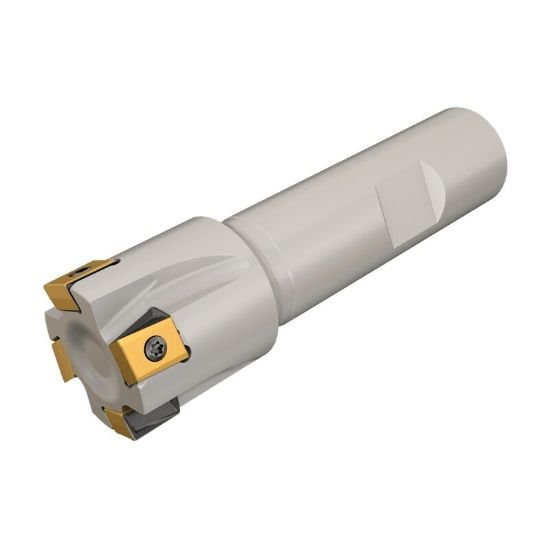

Picture of Iscar T490 ELN D1.00-4-W.75-08 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

Iscar T490 ELN D1.00-4-W.75-08 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

Part Number: ISC3105589 ISO: T490 ELN D1.00-4-W.75-08 ANSI:T490 ELN D1.00-4-W.75-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012340
Vendor: Sussex Tool and Supply
$444.00
ISCAR 3105589 90.0°, End Mill End Mill Weldon 0.7500 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.3800 85.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Insert Size Ic 8
Cut Dia Min 1.0000 25.40MM
Coolant Type External
Depth Of Cut Max 0.3150
Cut Dia Max 1.0000 25.40MM
Insert Screw 4398576
Cutting Edge Angle 90.0°
