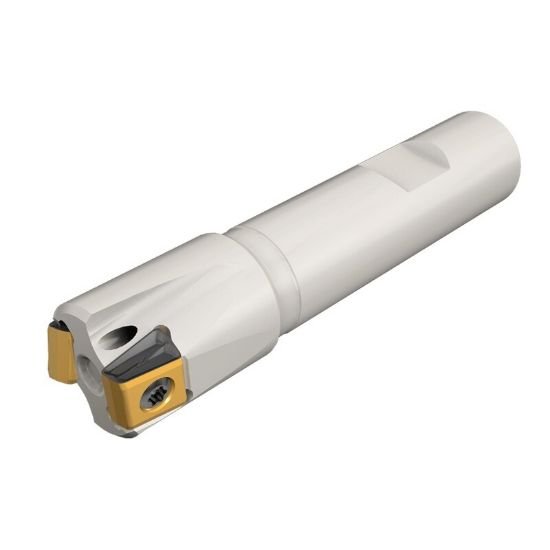

Picture of Iscar T490 ELN D.88-2-W.75-11* Milling Cutter 90.0° 0.880 Diameter Weldon 0.750 3.750 OAL 2 Flute

Iscar T490 ELN D.88-2-W.75-11* Milling Cutter 90.0° 0.880 Diameter Weldon 0.750 3.750 OAL 2 Flute

Part Number: ISC3107146 ISO: T490 ELN D.88-2-W.75-11* ANSI:T490 ELN D.88-2-W.75-11*
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1012600

Description

ISCAR 3107146 90.0°, End Mill End Mill Weldon 0.7500 Negative 0.8800 22.35MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4308097
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.8800 22.35MM
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.8800 22.35MM
Depth Of Cut Max 0.3500
Cut Dia Max 0.8800 22.35MM
Materials & Finish
Tool Material Steel
