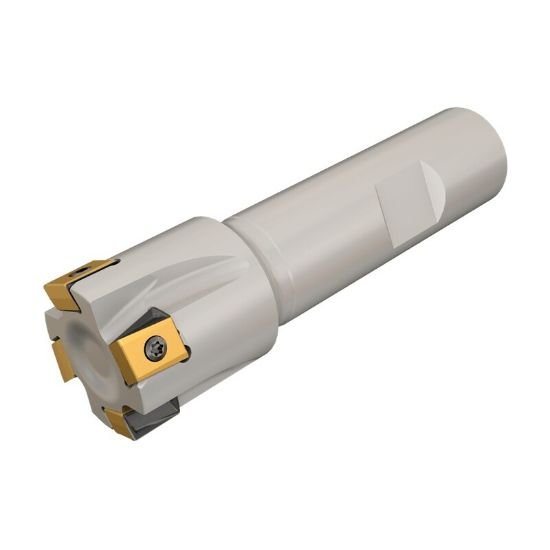

Picture of Iscar T490 ELN D.75-3-W.75-08C Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 3 Flute

Iscar T490 ELN D.75-3-W.75-08C Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 3 Flute

Part Number: ISC3105502 ISO: T490 ELN D.75-3-W.75-08C ANSI:T490 ELN D.75-3-W.75-08C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012306
Vendor: Sussex Tool and Supply
$463.68

Description

ISCAR 3105502 90.0°, End Mill End Mill Weldon 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4305676
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 8
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3150
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 1.80°
Materials & Finish
Tool Material Steel
