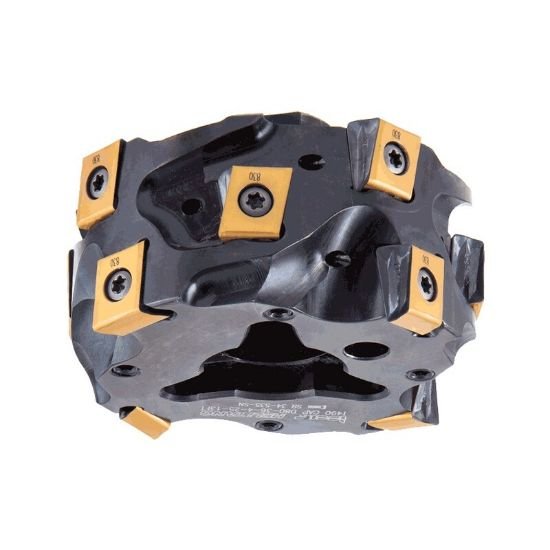

Picture of Iscar T490 Cap-D63-36-4-20-13FT Milling Cutter 90.0°, Corn Cob 2.480 Diameter Face Mill 2.480 1.417 OAL 12 Flute

Iscar T490 Cap-D63-36-4-20-13FT Milling Cutter 90.0°, Corn Cob 2.480 Diameter Face Mill 2.480 1.417 OAL 12 Flute

Part Number: ISC3106579 ISO: T490 CAP-D63-36-4-20-13FT ANSI:T490 CAP-D63-36-4-20-13FT
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012496
Vendor: Sussex Tool and Supply
$1,296.00

Description

ISCAR 3106579 90.0°, Corn Cob ISCCAP6 Negative 2.4800 62.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000000
Dimensions & Sizing
Overall Length 1.4170 35.99MM
Flutes/Inserts 12
Tool Dia 2.4800 62.99MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.4800 62.99MM
Depth Of Cut Max 1.4170
Materials & Finish
Tool Material Steel
