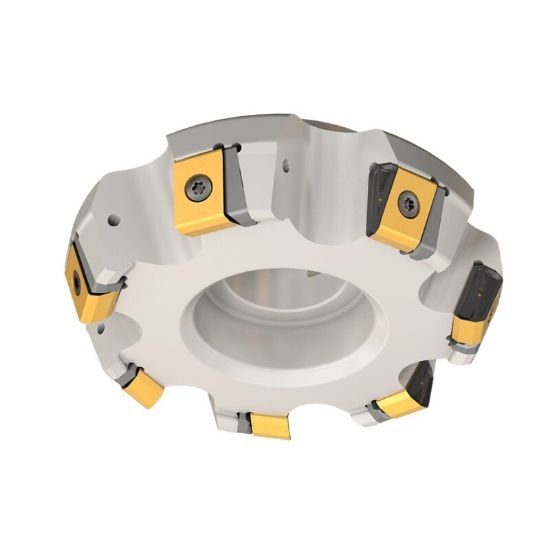

Picture of Iscar T465FLN D8.0-08-2.5R-22ST Milling Cutter 65.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 8 Flute

Iscar T465FLN D8.0-08-2.5R-22ST Milling Cutter 65.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 8 Flute

Part Number: ISC3181030 ISO: T465FLN D8.0-08-2.5R-22ST ANSI:T465FLN D8.0-08-2.5R-22ST
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012747
Vendor: Sussex Tool and Supply
$2,553.60

Description

ISCAR 3181030 65.0°, Face Mill SHELL2.5000 Negative 8.0000 203.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style T
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type External
Insert Screw 7000402
Seat/Nest 3100310
Seat Screw 7006711
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 8
Tool Dia 8.0000 203.20MM
Insert Size Ic 22
Geometry & Angles
Cutting Edge Angle 65.0°
Performance & Capacity
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.3400
Cut Dia Max 8.7400 222.00MM
Materials & Finish
Tool Material Steel
