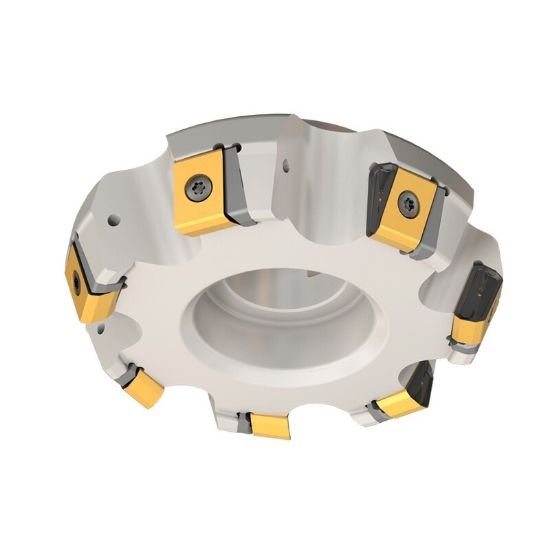

Picture of Iscar T465FLN D10-10-2.5R-22ST Milling Cutter 65.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 10 Flute

Iscar T465FLN D10-10-2.5R-22ST Milling Cutter 65.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 10 Flute

Part Number: ISC3181043 ISO: T465FLN D10-10-2.5R-22ST ANSI:T465FLN D10-10-2.5R-22ST
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012754
Vendor: Sussex Tool and Supply
$3,216.00

Description

ISCAR 3181043 65.0°, Face Mill SHELL2.5000 Negative 10.0000 254.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style T
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type External
Insert Screw 7000000
Seat/Nest 3100310
Seat Screw 7006711
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 10
Tool Dia 10.0000 254.00MM
Insert Size Ic 22
Geometry & Angles
Cutting Edge Angle 65.0°
Performance & Capacity
Cut Dia Min 10.0000 254.00MM
Depth Of Cut Max 0.3500
Cut Dia Max 10.8600 275.84MM
Materials & Finish
Tool Material Steel
