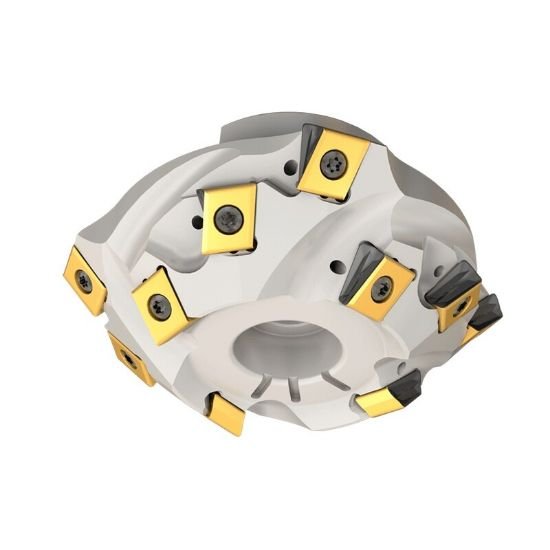

Picture of Iscar T460 SMD2.0-1.18-3-1.0-13 Milling Cutter 60.0° 2.000 Diameter Face Mill 2.362 2.165 OAL 9 Flute

Iscar T460 SMD2.0-1.18-3-1.0-13 Milling Cutter 60.0° 2.000 Diameter Face Mill 2.362 2.165 OAL 9 Flute

Part Number: ISC3106949 ISO: T460 SMD2.0-1.18-3-1.0-13 ANSI:T460 SMD2.0-1.18-3-1.0-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012584
Vendor: Sussex Tool and Supply
$787.20

Description

ISCAR 3106949 60.0°, Chamfer Mill, Corn Cob SHELL2.3620 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Corn Cob
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7002353
Dimensions & Sizing
Overall Length 2.1650 54.99MM
Flutes/Inserts 9
Tool Dia 2.0000 50.80MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 60.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.3150
Materials & Finish
Tool Material Steel
