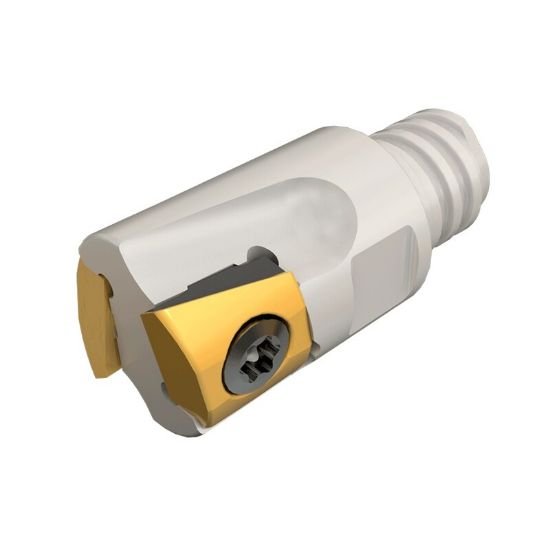

Picture of Iscar T290 ELN D.50-03-mmT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.940 OAL 3 Flute

Iscar T290 ELN D.50-03-mmT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.940 OAL 3 Flute

Part Number: ISC3105178 ISO: T290 ELN D.50-03-MMT08-05 ANSI:T290 ELN D.50-03-MMT08-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012247
Vendor: Sussex Tool and Supply
$378.24

Description

ISCAR 3105178 90.0°, End Mill Thread On T08 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Coolant Type External
Insert Screw 7000219
Dimensions & Sizing
Overall Length 0.9400 23.88MM
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1970
Cut Dia Max 0.5000 12.70MM - 1/2
Materials & Finish
Tool Material Steel
