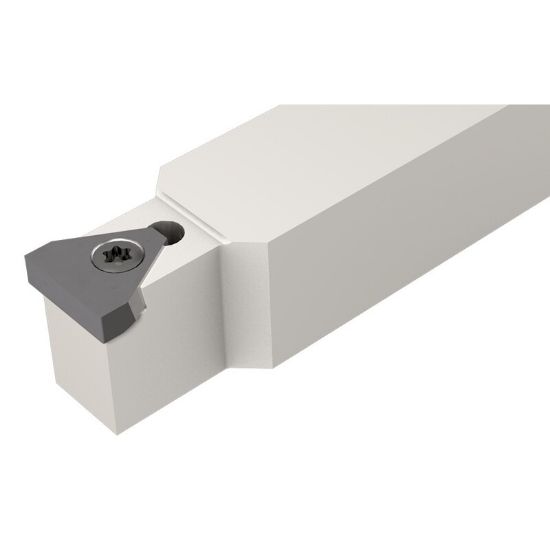

Picture of ISCAR SXCNN 1616 K20-05 Custom Groove Blank,Grooving Stick Tool 0.629 Tool

ISCAR SXCNN 1616 K20-05 Custom Groove Blank,Grooving Stick Tool 0.629 Tool

ANSI: SXCNN 1616 K20-05

ISO: SXCNN 1616 K20-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800951
Delivery date: 3-5 days
$180.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Toolholder seat needs to be modified according to insert profile to ensure clearance

V-lock external holders for wide form grooving inserts.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Screw On
Additional Key Information 4 Blank, Swiss
Package Size 1
Insert Type Positive
Additional Key Information 2 Stick Tool
Insert/Tool Tool
Application Ext.Grooving, Swiss
Sold by Pieces 1
Shipping State Texas
Additional Key Information 1 Grooving, Custom Groove Blank
Insert Application General Purpose
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side STICK TOOL0.6299
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 20
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.9210 124.99MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dove Tail
Insert Style XN
