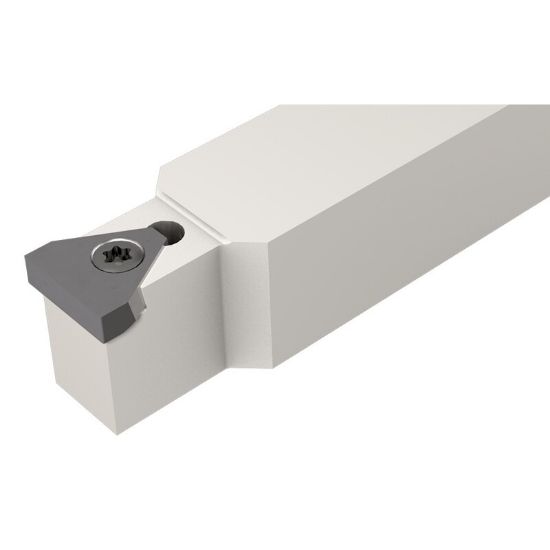

Picture of ISCAR SXCNN 1616 K14-03 Custom Groove Blank,Grooving Stick Tool 0.629 Tool

ISCAR SXCNN 1616 K14-03 Custom Groove Blank,Grooving Stick Tool 0.629 Tool

ANSI: SXCNN 1616 K14-03

ISO: SXCNN 1616 K14-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800963
Delivery date: 3-5 days
$173.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Toolholder seat needs to be modified according to insert profile to ensure clearance

V-lock external holders for wide form grooving inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Additional Key Information 2 Stick Tool
Insert Application General Purpose
Sold by Pieces 1
Additional Key Information 1 Custom Groove Blank, Grooving
Application Swiss, Ext.Grooving
Insert/Tool Tool
Additional Key Information 3 Screw On
Additional Key Information 4 Blank, Swiss
Package Size 1
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.6690
Insert Size Ic 14
Machine Side STICK TOOL0.6299
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.9210 124.99MM
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Dove Tail
Inter/Extern External
