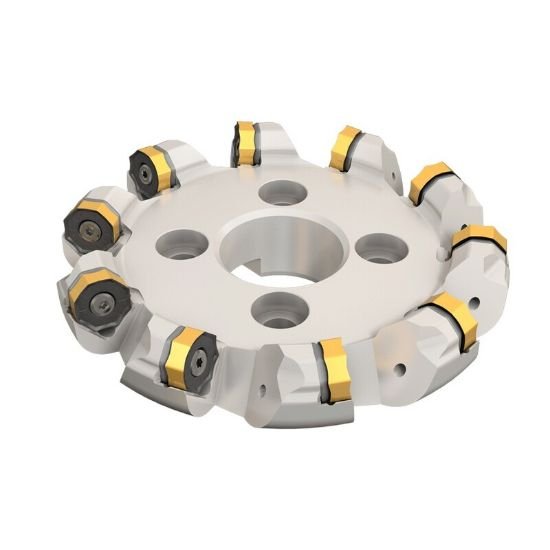

Picture of Iscar SOF45 D4.0-05-1.50-R26 Milling Cutter 45.0°, 44.0° 4.000 Diameter Face Mill 1.500 2.500 OAL 5 Flute

Iscar SOF45 D4.0-05-1.50-R26 Milling Cutter 45.0°, 44.0° 4.000 Diameter Face Mill 1.500 2.500 OAL 5 Flute

Part Number: ISC3106619 ISO: SOF45 D4.0-05-1.50-R26 ANSI:SOF45 D4.0-05-1.50-R26
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012509
Vendor: Sussex Tool and Supply
$1,209.60

Description

ISCAR 3106619 Multi 45.0°, 44.0° , Face Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style SN, ON
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006240
Seat/Nest 4305966
Seat Screw 4305967
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 5
Tool Dia 4.0000 101.60MM
Insert Size Ic 26, 10
Geometry & Angles
Cutting Edge Angle 44.0°, 45.0°
Performance & Capacity
Cut Dia Min 4.1600 105.66MM
Depth Of Cut Max 0.4330
Cut Dia Max 4.9000 124.46MM
Materials & Finish
Tool Material Steel
