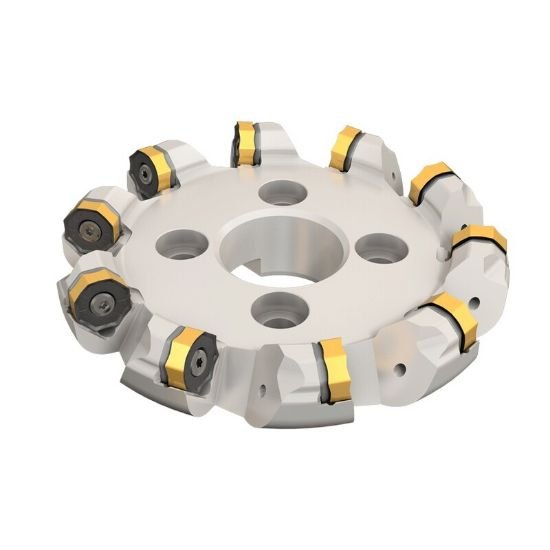

Picture of Iscar SOF45 D10.0-12-2.50-R26 Milling Cutter 45.0°, 44.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

Iscar SOF45 D10.0-12-2.50-R26 Milling Cutter 45.0°, 44.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

Part Number: ISC3106623 ISO: SOF45 D10.0-12-2.50-R26 ANSI:SOF45 D10.0-12-2.50-R26
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012513
Vendor: Sussex Tool and Supply
$2,726.40

Description

ISCAR 3106623 Multi 45.0°, 44.0° , Face Mill SHELL2.5000 Negative 10.0000 254.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style SN, ON
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type External
Insert Screw 7002353
Seat/Nest 4305966
Seat Screw 4305967
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 12
Tool Dia 10.0000 254.00MM
Insert Size Ic 26, 10
Geometry & Angles
Cutting Edge Angle 44.0°, 45.0°
Performance & Capacity
Cut Dia Min 10.1600 258.06MM
Depth Of Cut Max 0.3150
Cut Dia Max 10.9050 276.99MM
Materials & Finish
Tool Material Steel
