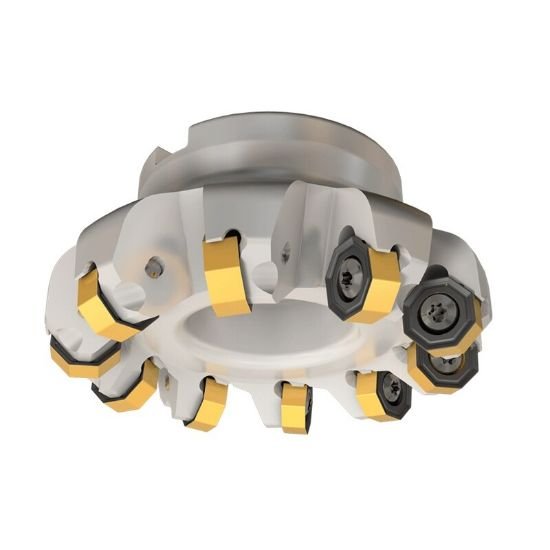

Picture of Iscar SOF45 8/16-D5.0-10-1.50R Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 1.480 OAL 10 Flute

Iscar SOF45 8/16-D5.0-10-1.50R Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 1.480 OAL 10 Flute

Part Number: ISC3104592 ISO: SOF45 8/16-D5.0-10-1.50R ANSI:SOF45 8/16-D5.0-10-1.50R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012163
Vendor: Sussex Tool and Supply
$1,411.20

Description

ISCAR 3104592 Multi 45.0°, 44.0° , Button, Feed Mill SHELL1.5000 Negative 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type External
Insert Screw 7000229
Dimensions & Sizing
Overall Length 1.4800 37.59MM
Flutes/Inserts 10
Tool Dia 5.0000 127.00MM
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.2200
Cut Dia Max 5.4090 137.39MM
Materials & Finish
Tool Material Steel
