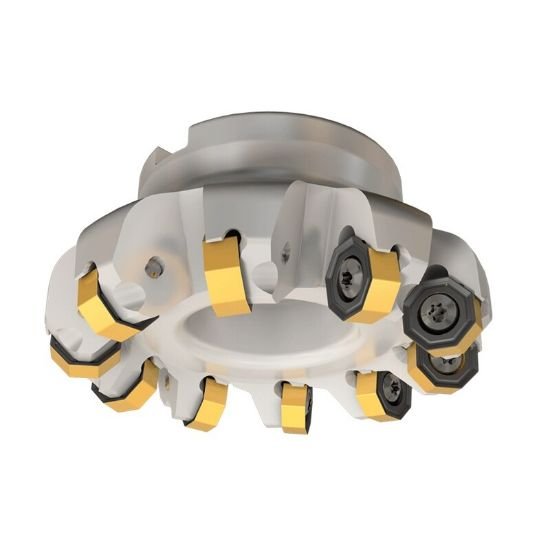

Picture of Iscar SOF45 8/16-D4.0-12-1.50R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 1.480 OAL 12 Flute

Iscar SOF45 8/16-D4.0-12-1.50R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 1.480 OAL 12 Flute

Part Number: ISC3105683 ISO: SOF45 8/16-D4.0-12-1.50R ANSI:SOF45 8/16-D4.0-12-1.50R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012355
Vendor: Sussex Tool and Supply
$1,468.80

Description

ISCAR 3105683 Multi 45.0°, 44.0° , Button, Feed Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type External
Insert Screw 7006042
Dimensions & Sizing
Overall Length 1.4800 37.59MM
Flutes/Inserts 12
Tool Dia 4.0000 101.60MM
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.0390
Cut Dia Max 4.4090 111.99MM
Materials & Finish
Tool Material Steel
