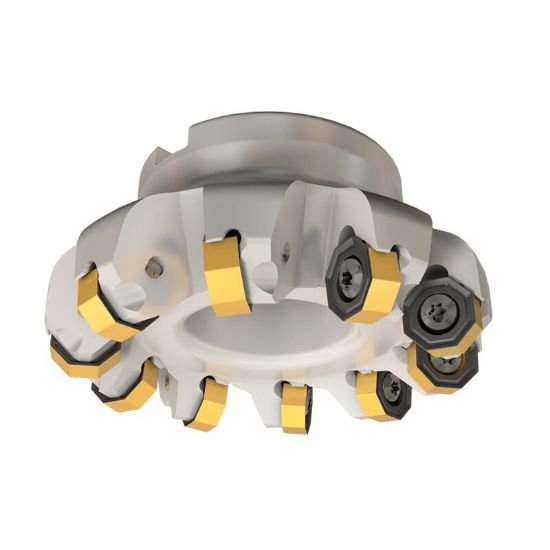

Picture of Iscar SOF45 8/16-D4.0-12-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 12 Flute

Iscar SOF45 8/16-D4.0-12-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 12 Flute

Part Number: ISC3104872 ISO: SOF45 8/16-D4.0-12-1.25R ANSI:SOF45 8/16-D4.0-12-1.25R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012201
Vendor: Sussex Tool and Supply
$1,360.00
ISCAR 3104872 Multi 45.0°, 44.0° , Button, Feed Mill SHELL1.2500 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.2500 31.75MM
Overall Length 1.4800 37.59MM
Coolant Thru Non Coolant
Flutes/Inserts 12
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Cut Dia Min 4.0000 101.60MM
Coolant Type External
Depth Of Cut Max 0.6300
Cut Dia Max 4.4090 111.99MM
Insert Screw 7000219
Cutting Edge Angle 45.0°
