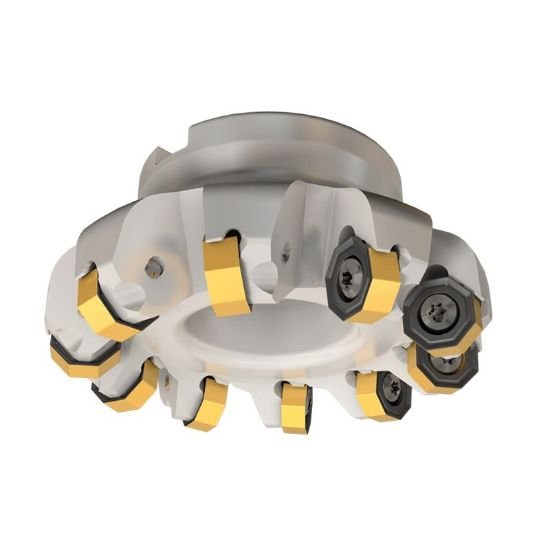

Picture of Iscar SOF45 8/16-D4.0-08-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 8 Flute

Iscar SOF45 8/16-D4.0-08-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 8 Flute

Part Number: ISC3104591 ISO: SOF45 8/16-D4.0-08-1.25R ANSI:SOF45 8/16-D4.0-08-1.25R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012162
Vendor: Sussex Tool and Supply
$1,267.20

Description

ISCAR 3104591 Multi 45.0°, 44.0° , Button, Feed Mill SHELL1.2500 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type External
Insert Screw 7004916
Dimensions & Sizing
Overall Length 1.4800 37.59MM
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.1140
Cut Dia Max 4.4090 111.99MM
Materials & Finish
Tool Material Steel
