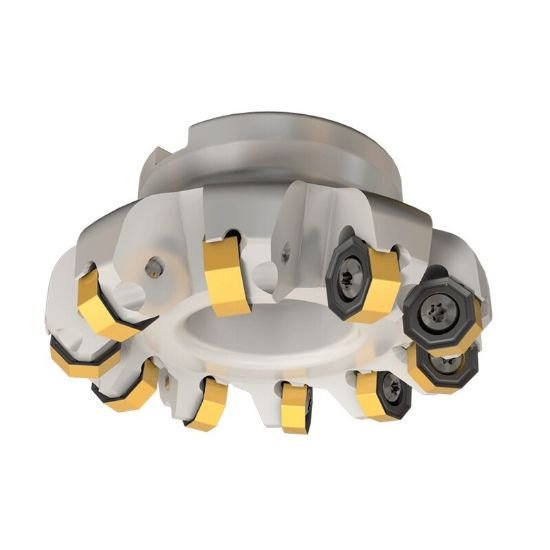

Picture of Iscar SOF45 8/16-D3.0-10-1.00R Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.301 OAL 10 Flute

Iscar SOF45 8/16-D3.0-10-1.00R Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.301 OAL 10 Flute

Part Number: ISC3104871 ISO: SOF45 8/16-D3.0-10-1.00R ANSI:SOF45 8/16-D3.0-10-1.00R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012200
Vendor: Sussex Tool and Supply
$1,008.00

Description

ISCAR 3104871 Multi 45.0°, 44.0° , Button, Feed Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type External
Insert Screw 7004916
Dimensions & Sizing
Overall Length 1.3010 33.05MM
Flutes/Inserts 10
Tool Dia 3.0000 76.20MM
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.1140
Cut Dia Max 3.4090 86.59MM
Materials & Finish
Tool Material Steel
