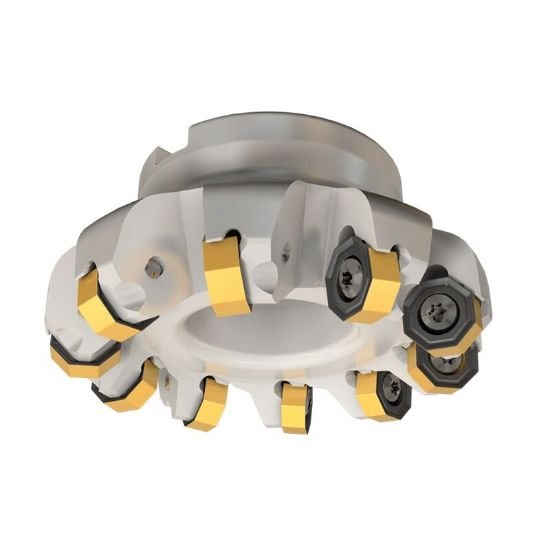

Picture of Iscar SOF45 8/16-D3.0-07-1.00R Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.301 OAL 7 Flute

Iscar SOF45 8/16-D3.0-07-1.00R Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.301 OAL 7 Flute

Part Number: ISC3104645 ISO: SOF45 8/16-D3.0-07-1.00R ANSI:SOF45 8/16-D3.0-07-1.00R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012180
Vendor: Sussex Tool and Supply
$817.00
ISCAR 3104645 Multi 45.0°, 44.0° , Button, Feed Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.3010 33.05MM
Coolant Thru Non Coolant
Flutes/Inserts 7
Tool Dia 3.0000 76.20MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Cut Dia Min 3.0000 76.20MM
Coolant Type External
Depth Of Cut Max 0.1180
Cut Dia Max 3.4090 86.59MM
Insert Screw 7002377
Cutting Edge Angle 45.0°
