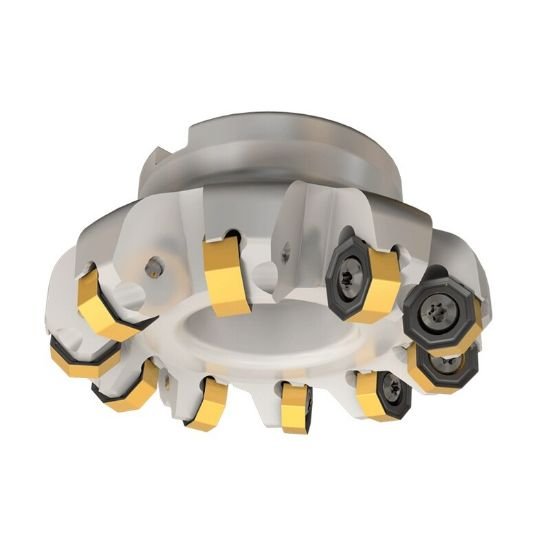

Picture of Iscar SOF45 8/16-D2.5-08-1.00R Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.301 OAL 8 Flute

Iscar SOF45 8/16-D2.5-08-1.00R Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.301 OAL 8 Flute

Part Number: ISC3104870 ISO: SOF45 8/16-D2.5-08-1.00R ANSI:SOF45 8/16-D2.5-08-1.00R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012199
Vendor: Sussex Tool and Supply
$892.80

Description

ISCAR 3104870 Multi 45.0°, 44.0° , Button, Feed Mill SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type External
Insert Screw 7004916
Dimensions & Sizing
Overall Length 1.3010 33.05MM
Flutes/Inserts 8
Tool Dia 2.5000 63.50MM - 2-1/2
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.1140
Cut Dia Max 2.9090 73.89MM
Materials & Finish
Tool Material Steel
