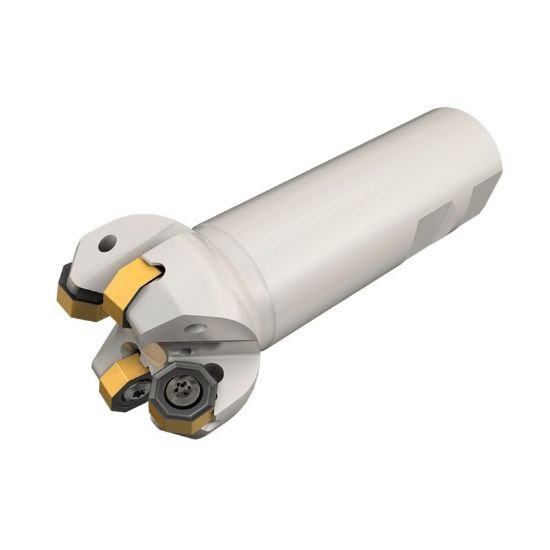

Picture of Iscar SOE45 8/16-D1.5-04-W1.25R Milling Cutter 45.0° 1.500 Diameter Weldon 1.250 4.551 OAL 4 Flute

Iscar SOE45 8/16-D1.5-04-W1.25R Milling Cutter 45.0° 1.500 Diameter Weldon 1.250 4.551 OAL 4 Flute

Part Number: ISC3105311 ISO: SOE45 8/16-D1.5-04-W1.25R ANSI:SOE45 8/16-D1.5-04-W1.25R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012288
Vendor: Sussex Tool and Supply
$545.28

Description

ISCAR 3105311 Multi 45.0°, 44.0° , Button, Feed Mill End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button, Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7004916
Dimensions & Sizing
Overall Length 4.5510 115.60MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 1.4070 35.74MM
Depth Of Cut Max 0.1140
Cut Dia Max 1.9090 48.49MM
Max Ramp Angle 3.70°
Materials & Finish
Tool Material Steel
