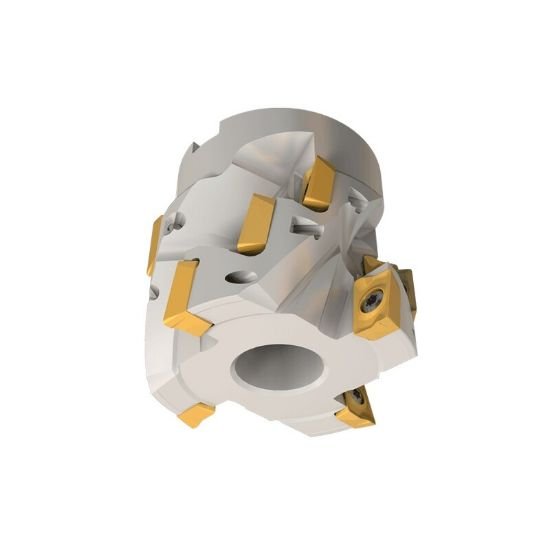

Picture of Iscar SM D3.00-1.50-1.25-M Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 2.380 OAL 15 Flute

Iscar SM D3.00-1.50-1.25-M Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 2.380 OAL 15 Flute

Part Number: ISC3100786 ISO: SM D3.00-1.50-1.25-M ANSI:SM D3.00-1.50-1.25-M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011789
Vendor: Sussex Tool and Supply
$1,766.40

Description

ISCAR 3100786 Parallelogram 90.0°, Corn Cob SHELL1.2500 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7001960
Dimensions & Sizing
Overall Length 2.3800 60.45MM
Flutes/Inserts 15
Tool Dia 3.0000 76.20MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.7200
Materials & Finish
Tool Material Steel
