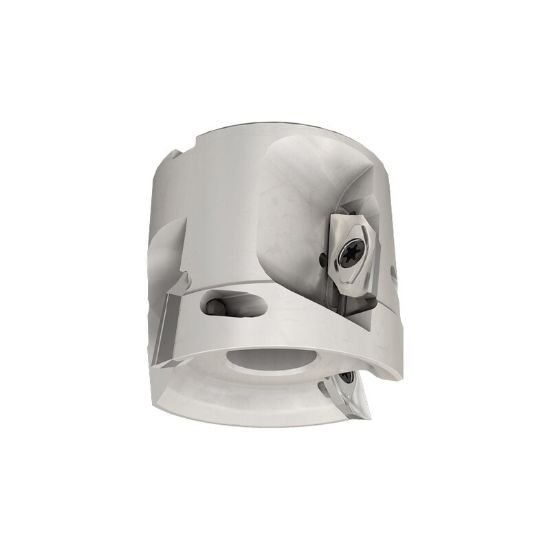

Picture of Iscar SM D2.50-1.18-1.00-16 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 2.362 2.160 OAL 4 Flute

Iscar SM D2.50-1.18-1.00-16 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 2.362 2.160 OAL 4 Flute

Part Number: ISC3103047 ISO: SM D2.50-1.18-1.00-16 ANSI:SM D2.50-1.18-1.00-16
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1011993

Description

ISCAR 3103047 Parallelogram 90.0°, Corn Cob SHELL2.3620 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002791
Dimensions & Sizing
Overall Length 2.1600 54.86MM
Flutes/Inserts 4
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 1.1800
Materials & Finish
Tool Material Steel
