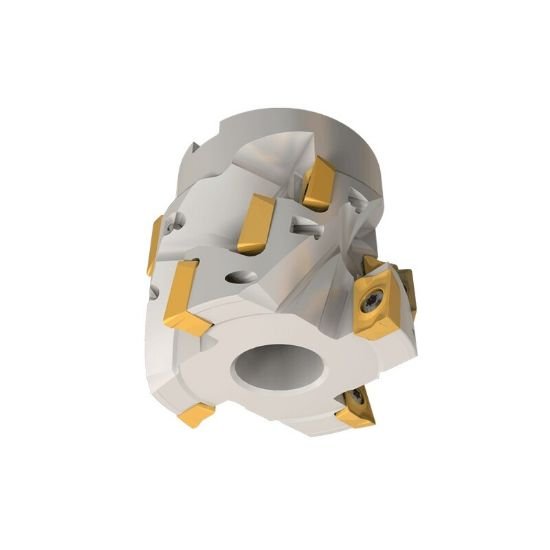

Picture of Iscar SM D2.5 -1.50-1.00-M Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 2.380 OAL 12 Flute

Iscar SM D2.5 -1.50-1.00-M Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 2.380 OAL 12 Flute

Part Number: ISC3100785 ISO: SM D2.5 -1.50-1.00-M ANSI:SM D2.5 -1.50-1.00-M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011788
Vendor: Sussex Tool and Supply
$1,238.40

Description

ISCAR 3100785 Parallelogram 90.0°, Corn Cob SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000402
Dimensions & Sizing
Overall Length 2.3800 60.45MM
Flutes/Inserts 12
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 1.5000
Materials & Finish
Tool Material Steel
