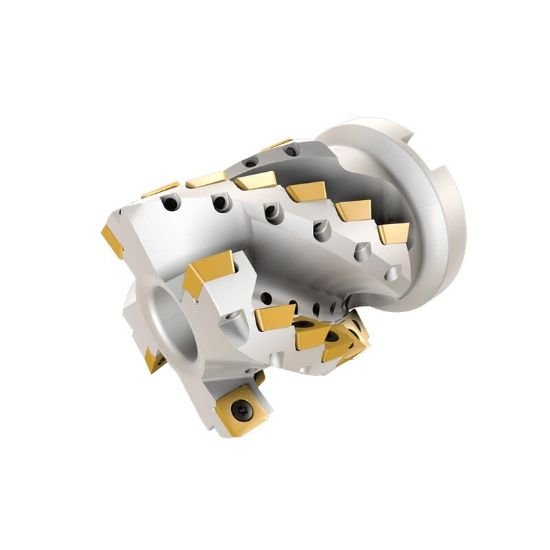

Picture of Iscar SDK D3.0-4.3-05-1.25-12-C Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 5.630 OAL 50 Flute

Iscar SDK D3.0-4.3-05-1.25-12-C Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 5.630 OAL 50 Flute

Part Number: ISC3323009 ISO: SDK D3.0-4.3-05-1.25-12-C ANSI:SDK D3.0-4.3-05-1.25-12-C
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012848
Vendor: Sussex Tool and Supply
$3,696.00

Description

ISCAR 3323009 Square 90.0°, Corn Cob SHELL1.2500 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7006978
Dimensions & Sizing
Overall Length 5.6300 143.00MM
Flutes/Inserts 50
Tool Dia 3.0000 76.20MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 3.0280
Materials & Finish
Tool Material Steel
