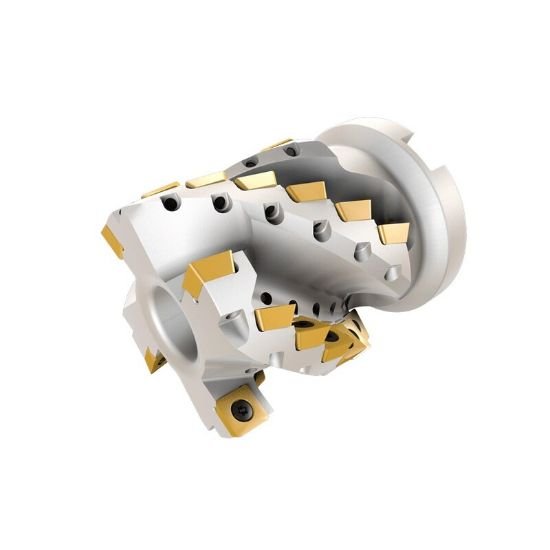

Picture of Iscar SDK D2.5-2.1-05-1.0-12-HP Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 3.150 OAL 25 Flute

Iscar SDK D2.5-2.1-05-1.0-12-HP Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 3.150 OAL 25 Flute

Part Number: ISC3323006 ISO: SDK D2.5-2.1-05-1.0-12-HP ANSI:SDK D2.5-2.1-05-1.0-12-HP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012846
Vendor: Sussex Tool and Supply
$4,166.40

Description

ISCAR 3323006 Square 90.0°, Corn Cob SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7006978
Dimensions & Sizing
Overall Length 3.1500 80.01MM
Flutes/Inserts 25
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 2.6030
Materials & Finish
Tool Material Steel
