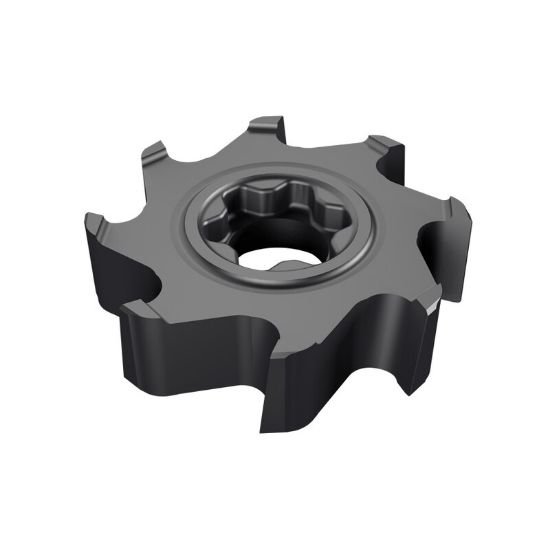

Picture of Iscar SD FM D2.00-468D-SP19 IC908 Dia 2 SH 0.7480 LOC 0.4680 OAL0.5510Face Mills,Replacable Head Carbide TiAlN Single End 0.0157 0.40mm T-Face

Iscar SD FM D2.00-468D-SP19 IC908 Dia 2 SH 0.7480 LOC 0.4680 OAL0.5510Face Mills,Replacable Head Carbide TiAlN Single End 0.0157 0.40mm T-Face

Part Number: ISC3348203 2.000 x 0.748 x 0.468 x 0.551
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1289751
Vendor: Sussex Tool and Supply
$417.29

Description

ISCAR SD FM D2.00-468D-SP19 IC908 Face Mills,Replacable Head Carbide TiAlN 0.0157 0.40MM Flutes 12 Single End T-FACE Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On Face Milling
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.5510 14.00MM
Shank/Pilot Dia 0.7480 19.00MM
Flutes/Inserts 12
Tool Dia 2.0000 50.80MM
Length Of Cut 0.4680 11.89MM
Geometry & Angles
Corner Radius 0.0157 0.40MM
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
