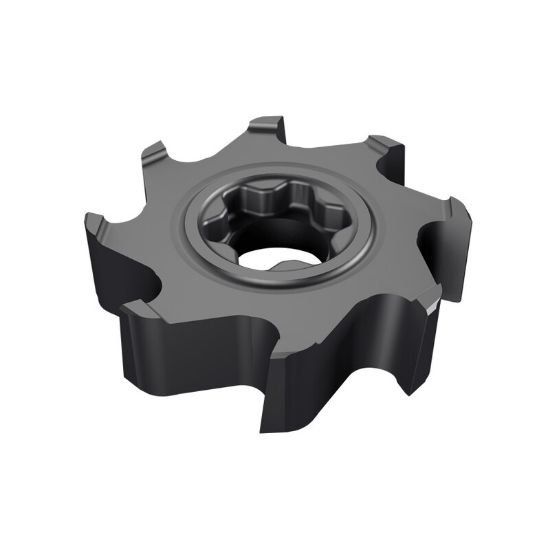

Picture of Iscar SD FM D1.50-375D-SP17 IC908 Dia 1-1/2 SH 0.6693 LOC 0.3750 OAL0.3930Face Mills,Replacable Head Carbide TiAlN Single End 0.0157 0.40mm T-Face

Iscar SD FM D1.50-375D-SP17 IC908 Dia 1-1/2 SH 0.6693 LOC 0.3750 OAL0.3930Face Mills,Replacable Head Carbide TiAlN Single End 0.0157 0.40mm T-Face

Part Number: ISC3348202 1.500 x 0.669 x 0.375 x 0.393
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1289750
Vendor: Sussex Tool and Supply
$238.81

Description

ISCAR SD FM D1.50-375D-SP17 IC908 Face Mills,Replacable Head Carbide TiAlN 0.0157 0.40MM Flutes 10 Single End T-FACE Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On Face Milling
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.3930 9.98MM
Shank/Pilot Dia 0.6690 16.99MM
Flutes/Inserts 10
Tool Dia 1.5000 38.10MM - 1-1/2
Length Of Cut 0.3750 9.53MM
Geometry & Angles
Corner Radius 0.0157 0.40MM
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
