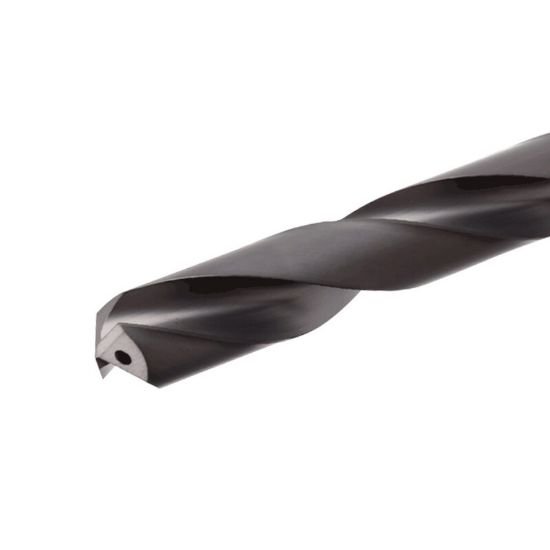

Iscar SCD0457-185-0500ACP3N IC908 0.457" DIn 6537 Solid Carbide Drills with Coolant Holes, Drilling Depth 3xD
Iscar SCD0457-185-0500ACP3N IC908 0.457" DIn 6537 Solid Carbide Drills with Coolant Holes, Drilling Depth 3xD
Part Number: ISC6309492 ISO: SCD0457-185-0500ACP3N IC908
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
ISCAR
SKU:
1113067
Vendor:
Sussex Tool and Supply
Call (262) 251-4020 for pricing
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
ISCAR 6309492 Carbide Drill Shank 0.5000 TiAlN 0.4567 11.60MM Drill Dia 3.0XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name
Attribute value
Shipping State
TEXAS
Made In USA
NO
Cutter Type
Carbide Drill
Tool Material
Carbide
Cutting Edge Mat
Carbide
Machine Side Connection Type
Cylindrical
Cut Rating
<48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating
TiAlN
Mach Side Connection Size
0.5000 12.70MM
Overall Length
3.7400 95.00MM
Coolant Thru
Thru Coolant
Shank/Pilot Dia
0.5000 12.70MM - 1/2
Flutes/Inserts
2
Tool Dia
0.4567 11.60MM
Type Of Tool
Drill
Included Angle
140°
Flute Length
1.3400 34.04MM
Cut Dia Min
0.4567 11.60MM
Dia Deep
3.0x Dia
