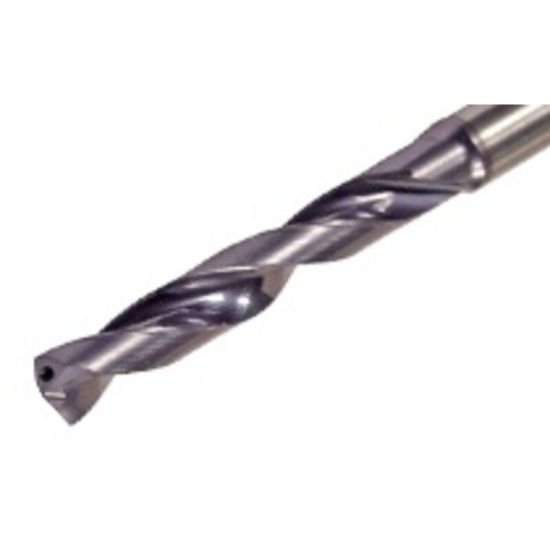

Picture of Iscar SCD 0343-236-0375ACP5 IC908 0.343" Solid Carbide Drills with Coolant Holes, Drilling Depth 5xD

Iscar SCD 0343-236-0375ACP5 IC908 0.343" Solid Carbide Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC5530510 ISO: SCD 0343-236-0375ACP5 IC908
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1113092
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 5530510 Carbide Drill Shank 0.3750 TiAlN 0.3438 8.73MM - 11/32 Drill Dia 5.0XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0600 103.12MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3438 8.73MM - 11/32
Flute Length 1.9200 48.77MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.3438 8.73MM - 11/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
