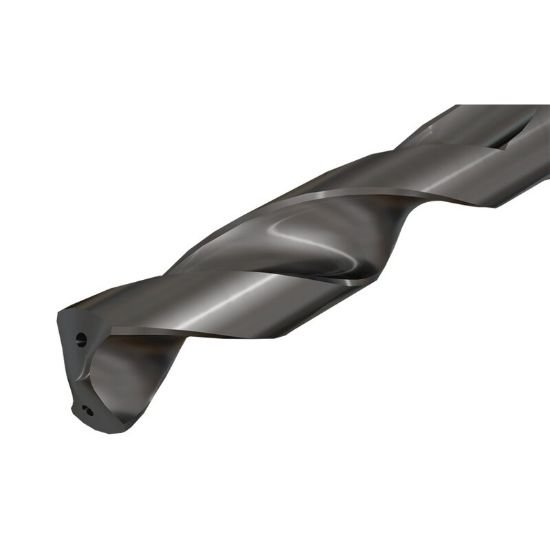

Iscar SCD 0187-105-0187ACP3 IC908 0.187" Solid Carbide Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC5530756 ISO: SCD 0187-105-0187ACP3 IC908

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1113038
Call (262) 251-4020 for pricing
ISCAR 5530756 Carbide Drill Shank 0.1875 TiAlN 0.1870 4.75MM Drill Dia 3.0XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.5800 65.53MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Tool Dia 0.1870 4.75MM
Type Of Tool Drill
Included Angle 140°
Flute Length 0.8000 20.32MM
Cut Dia Min 0.1870 4.75MM
Dia Deep 3.0x Dia
